Lift Check Valve PN16 untuk Steam Line & Boiler Installation Guide & Material

Kata Kunci Utama: lift check valve PN16 steam, check valve untuk boiler, lift check valve steam line Kata Kunci Turunan: lift vs swing check valve steam, check valve after steam trap, material check valve steam, instalasi check valve boiler, water hammer prevention

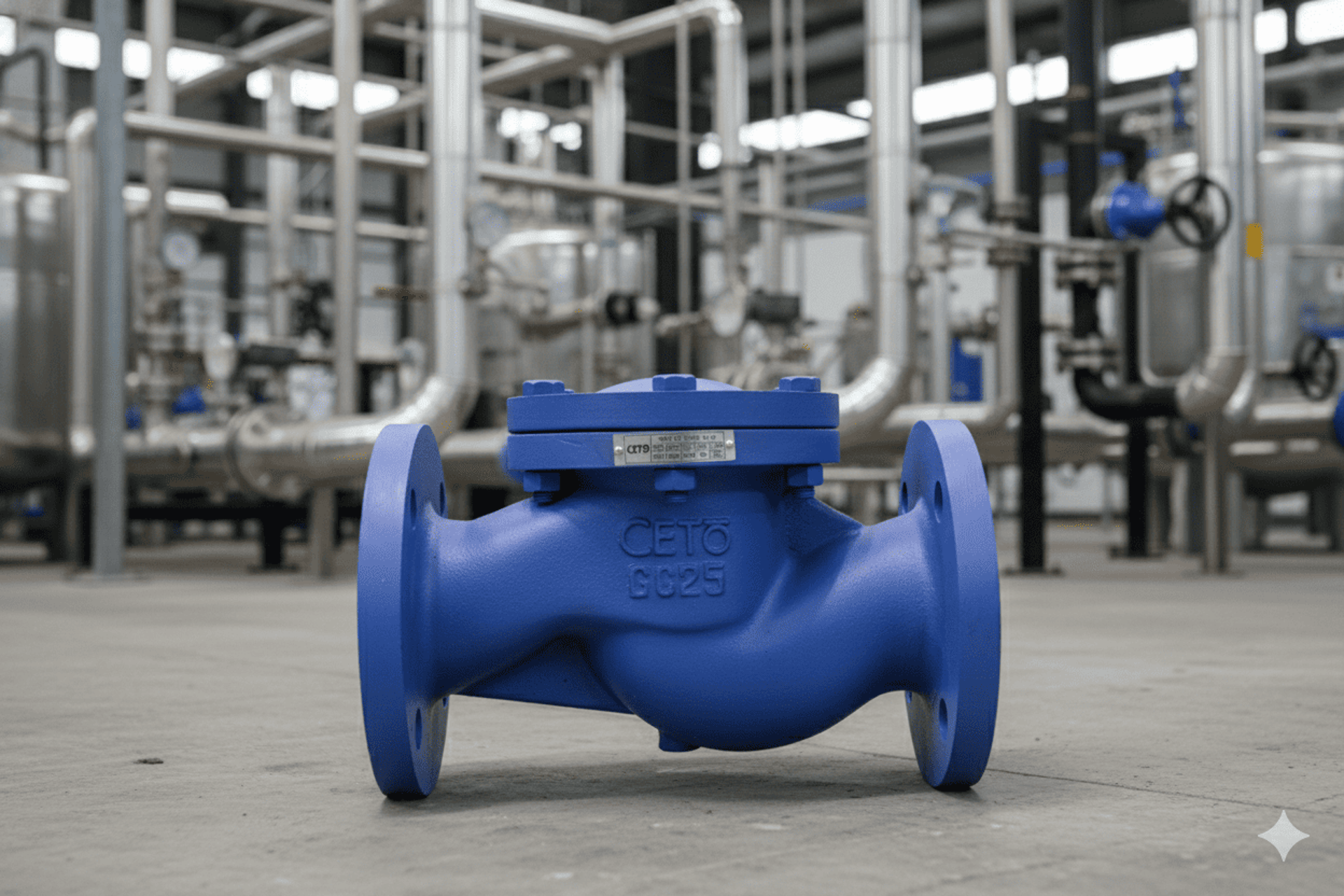

Lift Check Valve PN16 untuk Steam Quick Close & High-Temp Capable

Lift check valve adalah pilihan optimal untuk steam line & boiler karena quick-closing (prevent steam reverse) + high-temp capable (200°C with proper materials). Lift check valve PN16 cocok untuk low-medium pressure steam (≤16 bar) di boiler feedwater, steam header, dan after steam trap (critical location).

Spesifikasi Lift Check Valve PN16 untuk Steam

CRITICAL for steam:

• ❌ NO cast iron body (thermal shock risk)

• ❌ NO PTFE/EPDM seat (melt > 100°C)

• ✅ Cast steel body + metal seat required

Lift vs Swing Check Valve untuk Steam Kapan Pilih Mana?

Buyer sering bingung: lift atau swing check valve untuk steam? Berikut comparison:

Kapan Pilih Lift Check Valve untuk Steam?

• ✅ Boiler feedwater — quick close prevent backflow ke pump

• ✅ After steam trap — prevent condensate backflow

• ✅ Small bore steam lines (DN 25–80)

• ✅ Quick-closing critical (prevent steam reverse rapid)

Kapan Pilih Swing Check Valve?

• ✅ Main steam header (large bore DN > 100)

• ✅ Low-velocity steam (swing tidak butuh minimum velocity tinggi)

Kesimpulan: Lift check valve adalah specialist untuk boiler feedwater & after steam trap — swing check valve untuk main header large bore.

Steam System Diagram Lift Check Valve Locations

Critical locations for lift check valve:

1. After boiler outlet — prevent backflow ke boiler saat pressure drop

2. After steam trap — prevent condensate backflow (MOST CRITICAL!)

3. Before pump (feedwater) — prevent backflow ke storage tank

Installation Locations Detail

Location 1: After Boiler Outlet

Function: Prevent steam backflow ke boiler saat pressure drop (multi-boiler systems).

Why lift check: Quick close when pressure reverse.

Location 2: After Steam Trap

Function: Prevent condensate backflow from return line ke steam trap.

Problem kalau tidak ada check valve:

• Condensate backflow → steam trap failure

• Water hammer di steam trap

• Inefficient condensate removal

Why lift check:

• ✅ Quick close prevent backflow

• ✅ Compact size (DN 25–50 typical after trap)

This is THE most common location untuk lift check valve di steam systems.

Location 3: Boiler Feedwater (Before Pump)

Function: Prevent backflow ke feedwater tank saat pump stop.

Why lift check: Positive shut-off, quick close.

Material Requirements untuk Steam

CRITICAL:

• ❌ Cast iron body TIDAK COCOK untuk steam (thermal shock crack)

• ❌ PTFE/EPDM seat TIDAK COCOK (melt > 100°C)

• ✅ Cast steel body + metal seat minimum requirement

Troubleshooting Lift Check Valve untuk Steam

FAQ Pertanyaan Umum

Q: Kenapa lift check valve cocok untuk steam line & boiler?

A: Quick-closing (disc drop short distance) = prevent steam reverse rapidly. High-temp capable (200°C dengan cast steel + metal seat). Cocok untuk boiler feedwater dan after steam trap — two most critical locations untuk prevent backflow.

Q: Lift check valve atau swing check valve untuk steam?

A: Lift check: untuk boiler feedwater, after steam trap, small bore (DN 25–80) — quick-closing critical. Swing check: untuk main steam header large bore (DN > 100) — economical. Lift = specialist, swing = large bore generalist.

Q: Apa material yang cocok untuk lift check valve steam?

A: Body: ✅ cast steel WCB (BUKAN cast iron — thermal shock risk!). Seat: ✅ metal seat (SS atau stellite) — PTFE/EPDM melt > 100°C. Disc: SS 13Cr (korosi resistant). For superheated steam (> 200°C), upgrade ke forged steel A105.

Q: Kenapa harus install lift check valve after steam trap?

A: CRITICAL! Tanpa check valve, condensate bisa backflow dari return line ke steam trap → cause: (1) steam trap failure, (2) water hammer, (3) inefficient drainage. Lift check valve prevent backflow = protect steam trap.

Q: Berapa temperature max lift check valve PN16 untuk steam?

A: 200°C (dengan cast steel body + metal seat). Ini adalah saturated steam @ 16 bar. Untuk superheated steam (> 200°C), upgrade ke PN25 atau PN40 dengan forged steel body.

Q: Apakah lift check valve bisa dipasang vertical untuk steam line?

A: Hanya vertical upward flow (dari bawah ke atas) — disc lift melawan gravitasi. JANGAN install vertical downward atau horizontal (flow horizontal) — disc tidak lift proper. For horizontal steam lines, install valve horizontal dengan flow vertical upward through valve.

Konsultasi & Pembelian

Butuh lift check valve PN16 untuk steam line & boiler system?

📱 WhatsApp: +62 812-8530-8088

☎️ Telepon: +62 61 420-85666

📧 Email: sales@mitrasahabat.co.id

🌐 Website: www.mitrasahabat.co.id

📍 Lokasi: Komp. Makro Bisnis Center D-11, Medan Sunggal, Sumatera Utara

⏰ Jam Operasional: Senin–Jumat 09:00–17:00 | Sabtu 09:00–12:00

Produk Check Valve untuk Steam

• Lift Check Valve PN16 — boiler feedwater, after steam trap ← artikel ini

• Swing Check Valve PN16 — main steam header large bore

• Nozzle Check Valve — minimize slamming

• Material: Cast steel WCB, forged steel A105 (high-temp)

• Seat: Metal seat (SS, stellite hardfacing)

• Pressure: PN16, PN25, PN40 (sesuai steam pressure)

Artikel Terkait

• Lift Check Valve PN16 — Spesifikasi & Aplikasi

• Perawatan Lift Check Valve — Maintenance Guide

CRITICAL REMINDER: For steam applications, cast steel body + metal seat are MANDATORY. Cast iron body atau PTFE/EPDM seat akan FAIL di high-temp steam!
