Seat SS304 Austenitic Stainless untuk Zero Leakage

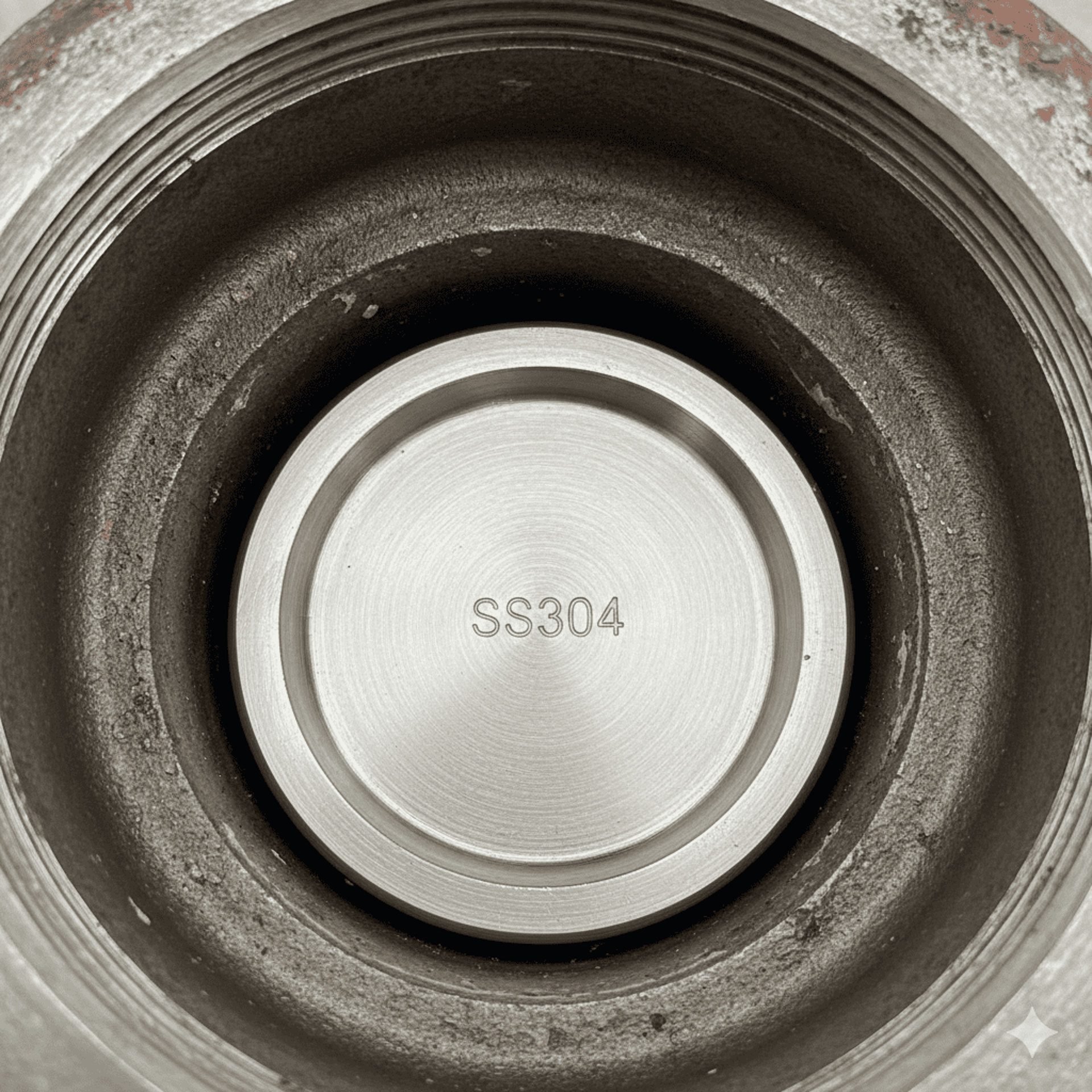

Seat SS304 adalah sealing surface di lift check valve yang contact dengan disc untuk prevent backflow. SS304 (austenitic stainless 18% Cr, 8% Ni) memberikan: (1) corrosion resistance (passive layer), (2) smooth surface (Ra 0.8μm achievable), (3) zero leakage (Class A per API 598). Cocok untuk water, mild chemicals, condensate — tahan korosi, long lifespan 7-12 years.

Properties Table SS304 Seat Material

Key advantage: Passive layer (Cr₂O₃) = self-healing corrosion protection.

SS304 vs Brass vs CF8 vs Metal Seat Comparison

Buyer sering bertanya: "SS304, brass, CF8, atau metal seat?" Berikut comparison:

Kapan Pilih SS304 Seat?

Kapan Pilih Alternatives?

Brass: ❌ NOT recommended (korosi risk — dezincification in water)

CF8: ✅ High-temp cast applications (body & seat sama-sama cast)

Metal Seat (Stellite): ✅ Steam (>200°C), high-cycle (wear critical), severe service — tapi 3-5× cost vs SS304

Kesimpulan: For water & mild chemicals, SS304 = optimal (corrosion resistant + economical). For steam >200°C atau severe wear, upgrade ke metal seat.

Surface Finish Critical untuk Zero Leakage

Leakage terjadi di micro-gaps antara disc-seat contact surface.

Surface Finish Specs

SS304 seat typically: Ra 0.8μm (grinding) = Class A zero leakage.

Metal seat (Stellite): Ra 0.4μm (lapping) = Class A+ absolute zero.

Leakage Rate Data

Per API 598 testing (water @ room temp, 1.1× rated pressure):

SS304 = Class A zero leakage — adequate untuk 90% applications.

Corrosion Resistance Passive Layer Protection

Mechanism

SS304 contains 18% Chromium → reacts dengan oxygen:

4Cr + 3O₂ → 2Cr₂O₃ (passive layer)

Passive layer (Cr₂O₃ film, ~2-5 nanometers):

• ✅ Self-healing (re-forms if scratched)

• ✅ Prevent corrosion (barrier layer)

• ✅ Stable in water & mild chemicals

Corrosion Resistance Table

SS304 limitation: Chloride >200 ppm → pitting risk. For seawater, use SS316 (add 2% Mo).

Lifespan SS304 Seat vs Alternatives

Example application: Pump discharge check valve DN 50, 10 bar, clean water, 8 hours/day.

Seat Material Failure Mode Lifespan Replacement Cost (10 years) SS304 Gradual wear 7-12 years 1× = Rp 800,000 Brass Corrosion + wear 3-5 years 3× = Rp 2,400,000 CF8 Gradual wear 8-12 years 1× = Rp 1,000,000 Metal Seat Minimal wear 10-20 years 0-1× = Rp 3,000,000 (but expensive initial)

SS304 = best TCO untuk water/mild chem applications.

Aplikasi SS304 Seat Lift Check Valve

NOT recommended for:

• ❌ Seawater → use SS316

• ❌ High-chloride (>200 ppm) → use SS316

• ❌ Steam >200°C + high-cycle → use metal seat

• ❌ Slurry/abrasive → use metal seat (hard)

Troubleshooting SS304 Seat Issues

FAQ Pertanyaan Umum

Q: Apa itu seat SS304 dan kenapa penting untuk lift check valve?

A: Seat SS304 adalah sealing surface di valve yang contact dengan disc untuk prevent backflow. SS304 (austenitic stainless 18% Cr) punya: (1) corrosion resistance excellent untuk water/mild chem, (2) smooth surface (Ra 0.8μm) untuk zero leakage Class A, (3) lifespan 7-12 tahun. Seat adalah critical sealing point — material quality determine leak rate.

Q: SS304 atau brass untuk seat check valve?

A: SS304 adalah far superior. Brass punya dezincification problem (Zn loss dalam water) → korosi, leak, short life (3-5 years). SS304 = corrosion resistant, 7-12 years lifespan, zero leakage. For water systems, ALWAYS choose SS304 over brass — TCO lebih rendah.

Q: Berapa surface finish optimal seat SS304?

A: Ra 0.8μm (grinding) adalah optimal — achieve Class A zero visible leakage (API 598). Lebih halus (Ra 0.4μm lapping) = Class A+ tapi cost naik. Lebih kasar (Ra 1.6μm) = Class C minor leak. For industrial check valve, Ra 0.8μm = sweet spot (performance vs cost).

Q: Apakah SS304 seat cocok untuk steam?

A: Yes, cocok untuk saturated steam ≤200°C (SS304 stable hingga 400°C). Tapi untuk high-cycle steam atau superheated >200°C, metal seat (Stellite) lebih baik — harder (wear resistant), better at high-temp. SS304 = adequate for normal steam, metal seat = optimal for severe steam.

Q: Kenapa SS304 seat zero leakage?

A: Smooth surface (Ra 0.8μm) + elastic matching dengan disc (2Cr13 HRC 40-50) = tight contact, zero micro-gaps. Per API 598 testing, SS304 seat ground finish = 0 mL/h leakage (Class A). Brass seat (rougher surface) = 10-40 mL/h leak.

Q: Berapa lifespan seat SS304 vs metal seat?

A: SS304: 7-12 tahun (water/mild chem, normal cycle). Metal seat (Stellite): 10-20 tahun (high-cycle, high-temp, abrasive). For cost vs lifespan: SS304 = best TCO untuk 90% applications. Metal seat = worth it untuk severe service only (3-5× cost).

Konsultasi & Pembelian

Butuh lift check valve dengan seat SS304 untuk water atau mild chemical system?

📱 WhatsApp: +62 812-8530-8088

☎️ Telepon: +62 61 420-85666

📧 Email: sales@mitrasahabat.co.id

🌐 Website: www.mitrasahabat.co.id

📍 Lokasi: Komp. Makro Bisnis Center D-11, Medan Sunggal, Sumatera Utara

⏰ Jam Operasional: Senin–Jumat 09:00–17:00 | Sabtu 09:00–12:00

Produk Lift Check Valve dengan Seat SS304

• CETO Lift Check Valve PN16 — disc 2Cr13 + seat SS304

• Body: Cast iron atau cast steel

• Seat: SS304 ground finish Ra 0.8μm

• Disc: 2Cr13 HRC 42-46

• Leakage: Class A zero visible per API 598

• Pressure: PN16, PN25, PN40

• Size: DN 15 – DN 100

• Application: Water, mild chemicals, condensate
